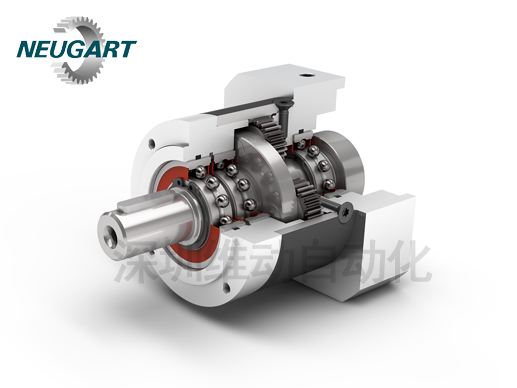

NEUGART planetary gearbox economical model specification comparison table

Model	Specification
PLE	PLE40	PLE60	PLE80	PLE120	PLE160
PLQE	PLQE60	PLQE80	PLQE120	-	-
PLPE	PLPE50	PLPE70	PLPE90	PLPE120	PLPE155
PLHE	PLHE60	PLHE80	PLHE120	-	-
PLFE	PLFE64	PLFE90	PLFE110	-	-
PFHE	PFHE64	PFHE90	PFHE110	-	-
WPLE	WPLE40	WPLE60	WPLE80	WPLE120	-
WPLQE	WPLQE60	WPLQE80	WPLQE120	-	-
WPLPE	WPLPE50	WPLPE70	WPLPE90	WPLPE120	-
WPLFE	WPLFE64	WPLFE90	WPLFE110	-	-

There are 10 models in the economic series of NEUGART planetary gearbox in Germany, among which W stands for right-angle gearbox.

The first gear ratios are 3, 4, 5, 7, 8, 10;

Secondary speed ratios are 9, 12, 15, 16, 20, 25, 32, 40, 64;

The three speed ratios are 60, 80, 100, 120, 160, 200, 256, 320, 512.

Among them, the four gearboxs of PLE, PLQE, WPLE and WPLQE have three speed ratios.

Taking PLE as an example, PLE80 i=12, PLE80 i=8, PLE60 i=60, PLE60 i=80, PLE60 i=120 and other models are widely used.

The above is mainly the model comparison of NEUGART economical gearbox. Different models are used in different industries and are suitable for different production conditions. The specific parameters will have specific parameters according to the selection situation.
